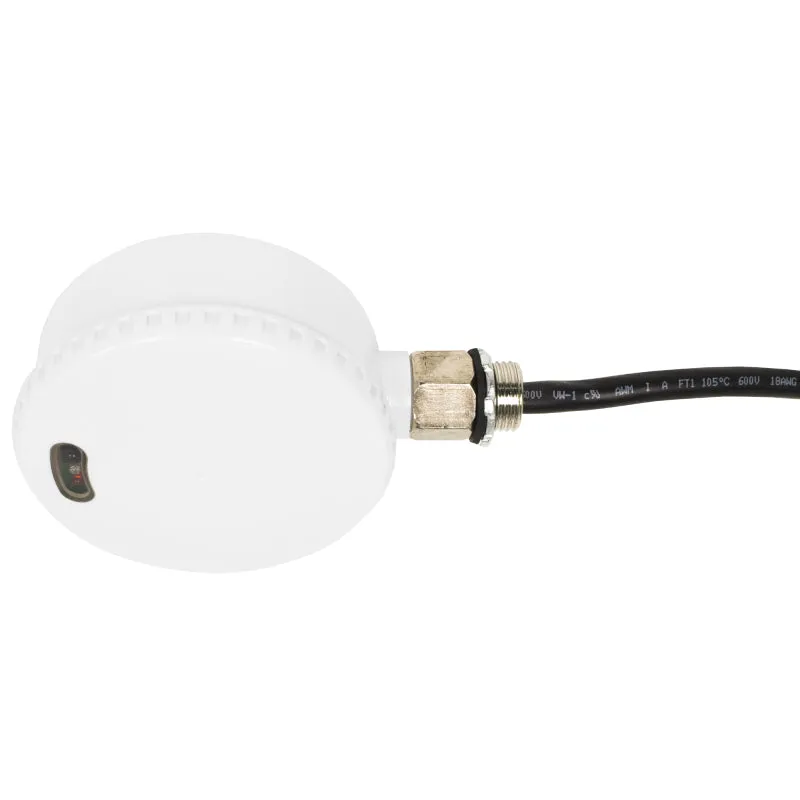

The WEC-3MR-48 an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution. It controls 0-10 VDC LED drivers or dimming ballasts. All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.

Features

• Power supply: 120/277VAC 50/60Hz
• HF System: 5.8GHz CW
• Dim control output: 0-10V, max. 25mA sinking current
• Detection radius/angle: Max 26.2ft. (8m)/360°
• Remote range: 33ft. (10m) indoor, no backlight
• Time setting: 10sec.-30min. (adjustable)
• Light-control: 10-2000Lux (adjustable)

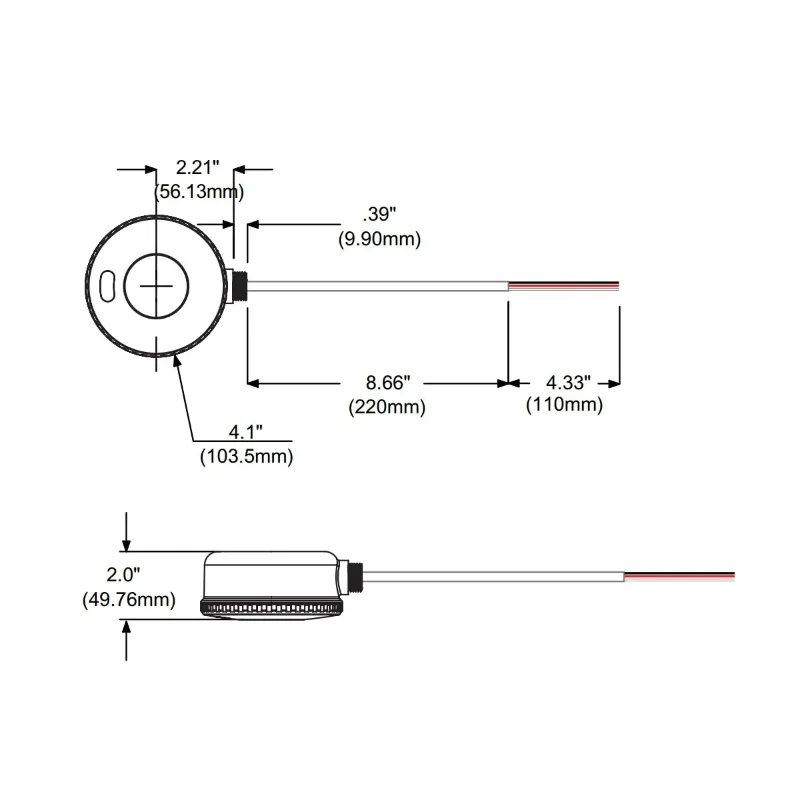

Dimensions

• Width: 17.09"

• Height: 2"
