Applications

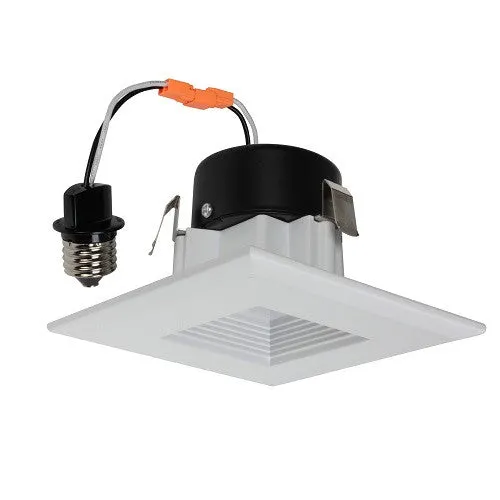

Ideal for both remodel or new construction applications, our 3.5” LED Retrofit trims are compatible with most 3.5” recessed standard housings. The kit comes with a detachable screw-in base connector for easy installation into standard incandescent sockets.

Illumination

• Long life LEDs with up to 50,000 hours at 70% lumen maintenance.
• Produces up to 560 lumens output from luminaire at 3000K CCT.
• Uses high power, high quality LEDs.

Electrical

• Dimmable down to 5% with most dimmers.
• Built-in LED driver with an input voltage of 120V.
• CRI >90
• Power consumption: 9 watts

Mounting

• Easy installation with adjustable torsion spring.
• Torsion spring is designed to fit into 3.5" housing automatically without changing mounting tab.
• No tools required for installation.

Housing

• White painted diecast housing construction.
• Oversized trim ring constructed from one-piece diecast.
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.

Warranty/Listing

• Tested in accordance with IESNA LM79 & LM80.
• Energy Star quali ed.
• Meets State of California Title 24 requirements.
• Five year warranty on all electronics and housing.
• Culus listed for damp and wet locations (not suitable for coastal/salt water areas).
• Operating temperature of -30°C to 40°C.
